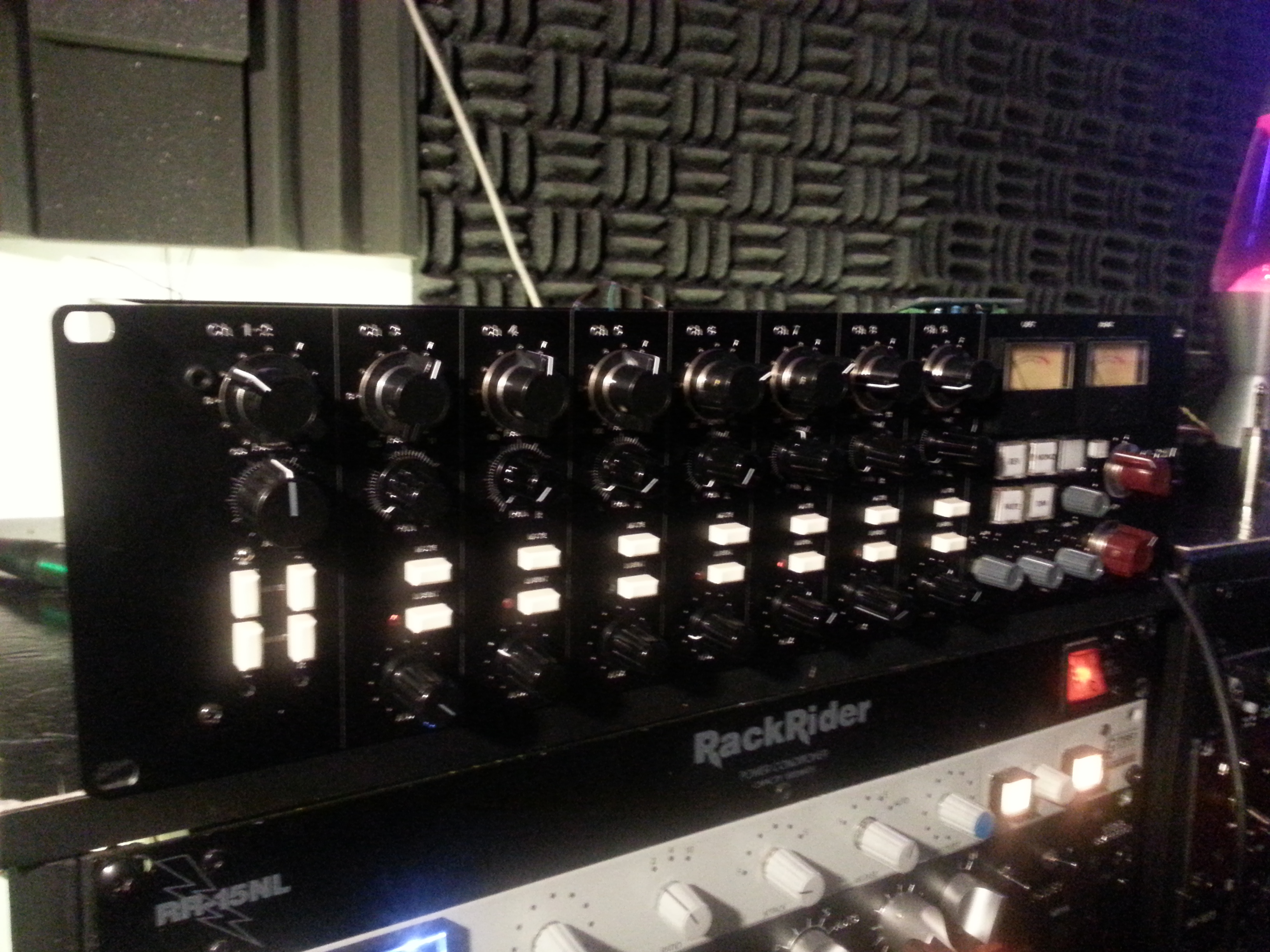

MX72-NV summing mixer

One stereo and eight mono channel summing mixer with Neve type summing section Carnhill input transformers and Ed Anderson (Mariner type) output transformers.

MX72-NV

Each channel uses a DOA and features gain, pan, and aux, with mute and insert switches.

MX72-NV master/monitor section

Master/Monitor section of MX72-NV summing mixer with switches for dim, mute, reverse, master insert, mono/stereo and headphone monitoring.

Lab Series L5+ type guitar amp

This is a remake of the Moog design Gibson Lab Series L5 with some modifications. Aion Electronics painstakingly reverse engineered the preamp section of the L5 to put it into a pedal format. After hearing the preamp we were impressed by Aion Electronics work, so we decided to add a compatible power amp and put it into a 2u rack. Wanting a little more variety we added an overdrive circuit very similar to the Big Muff Pi op amp circuit. Aion Electronics has a great history write up of the L5.

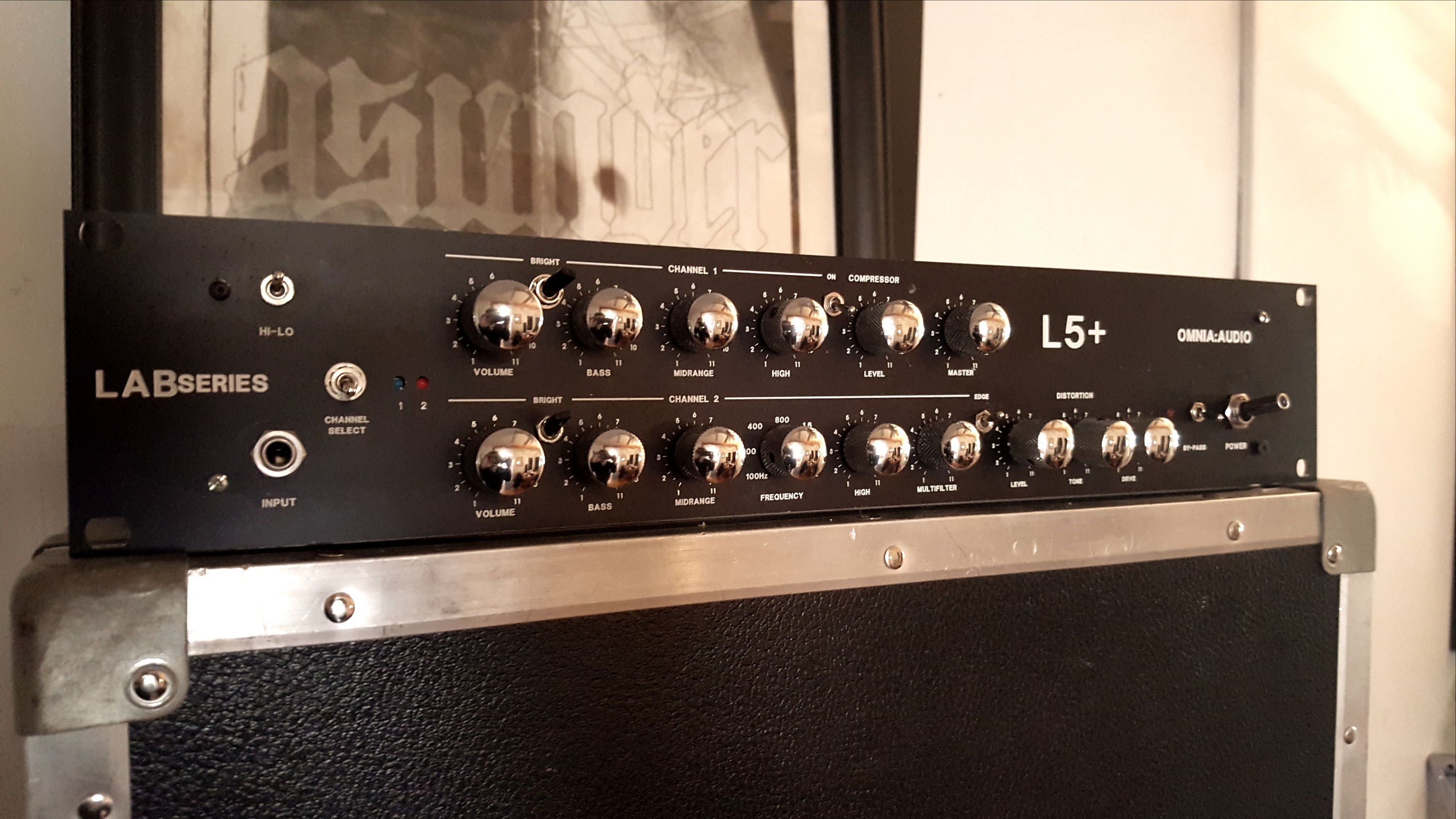

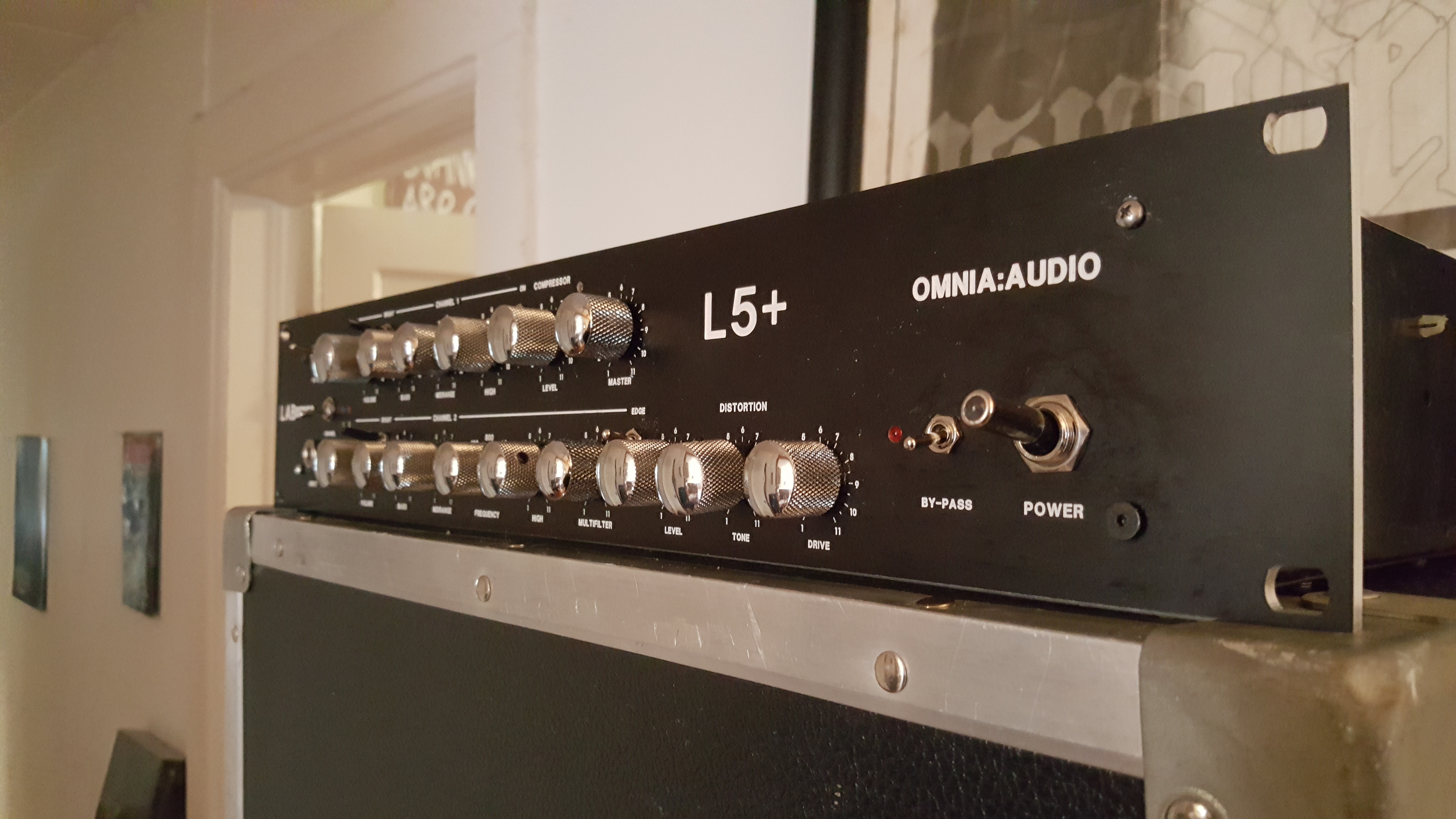

L5+

This was made for the studio but after a friend heard it we built a few more. The pcb was designed by Aion Electronics. Aion Electronics sells pcb's of classic guitar pedals.

Lab Series type L5+

The Lab Series amps are considered by many to be the most tube sounding solid state amps ever built. Lots of great guitarists swore by these amps. This adds an extra overdrive cirxuit to make it even more versatile.

he 69

Helios type 69 mic preamp and eq. Built using the schematics online and very loved in the studio.

he69 top

pirates of helio

Stelios type 69 mic preamp/equalizer

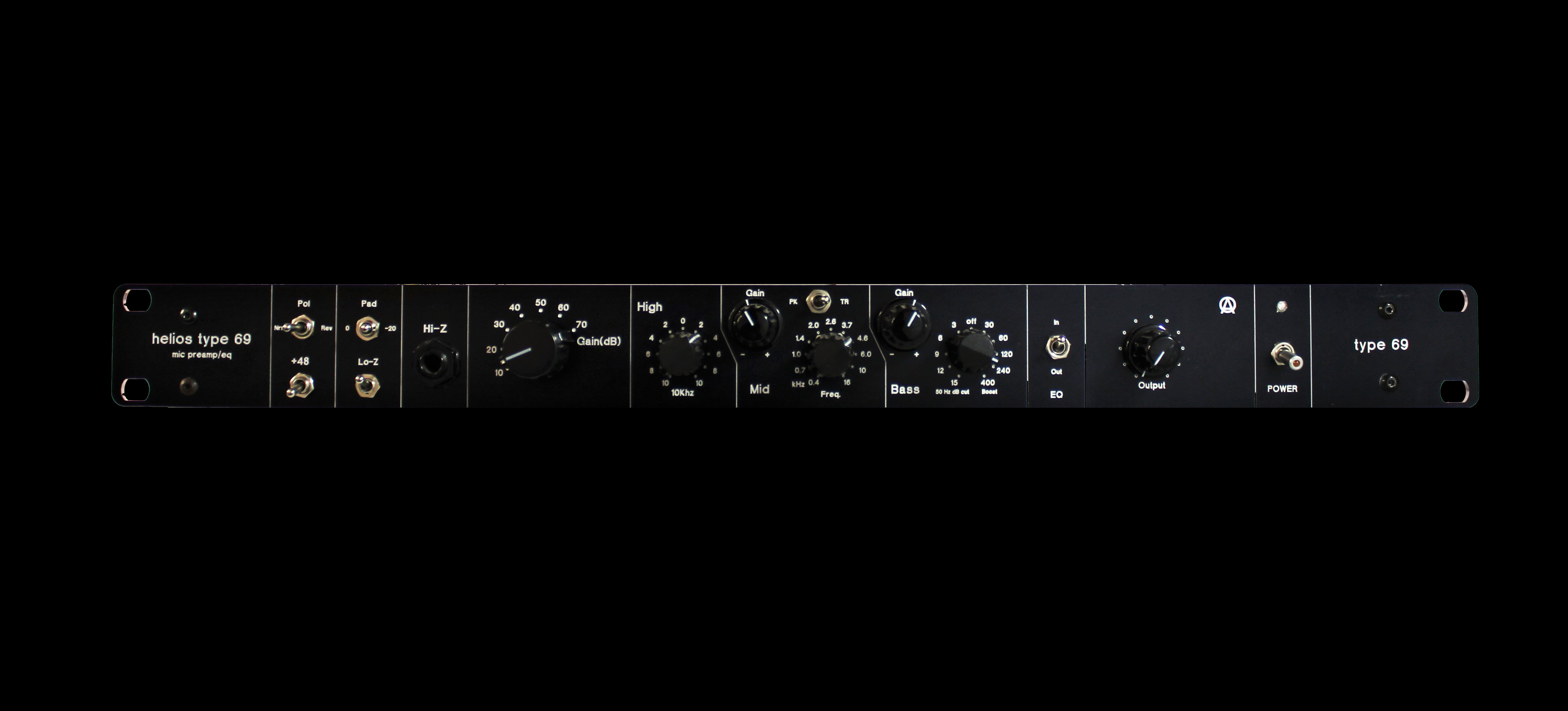

Helios type 69 mic preamp/eq based on the classic and coveted preamp eq. Redesigned and built by OMNIA:ARTS to include output transformers. Awesome Neve meets API preamp with a beautiful eq filter.

Helios type 69 micpre/eq

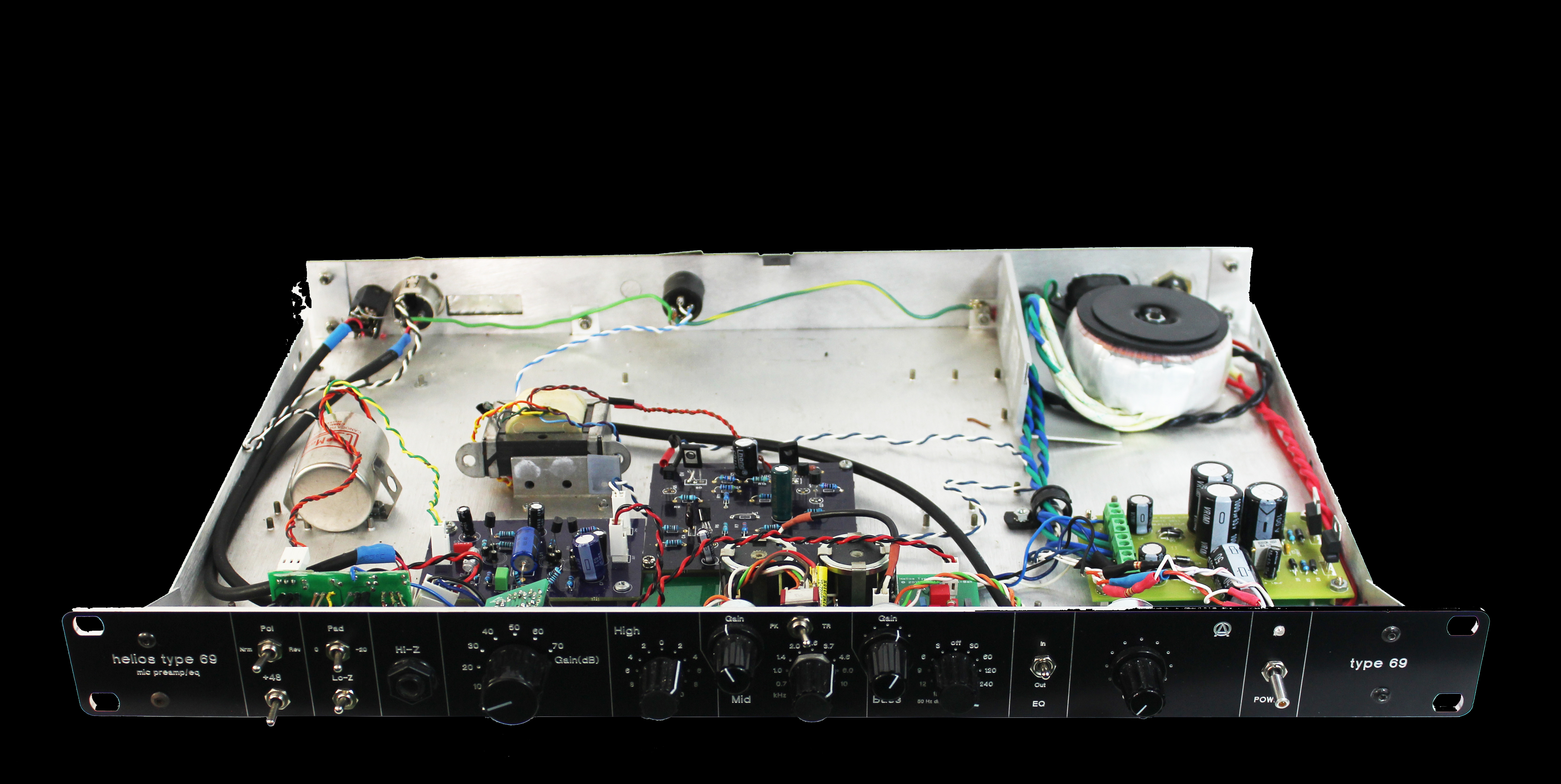

Helios type 69 remake by omnia:arts. We plan on combing the Helios front end with the infamous Neve 1290 output and see what magic occurs.

eq540 gyrator eq

omnia:arts was the first to build, test, and prototype this amazing gyrator equalizer designed by mad scientists and transistor wizard Pier Paolo Abbate.

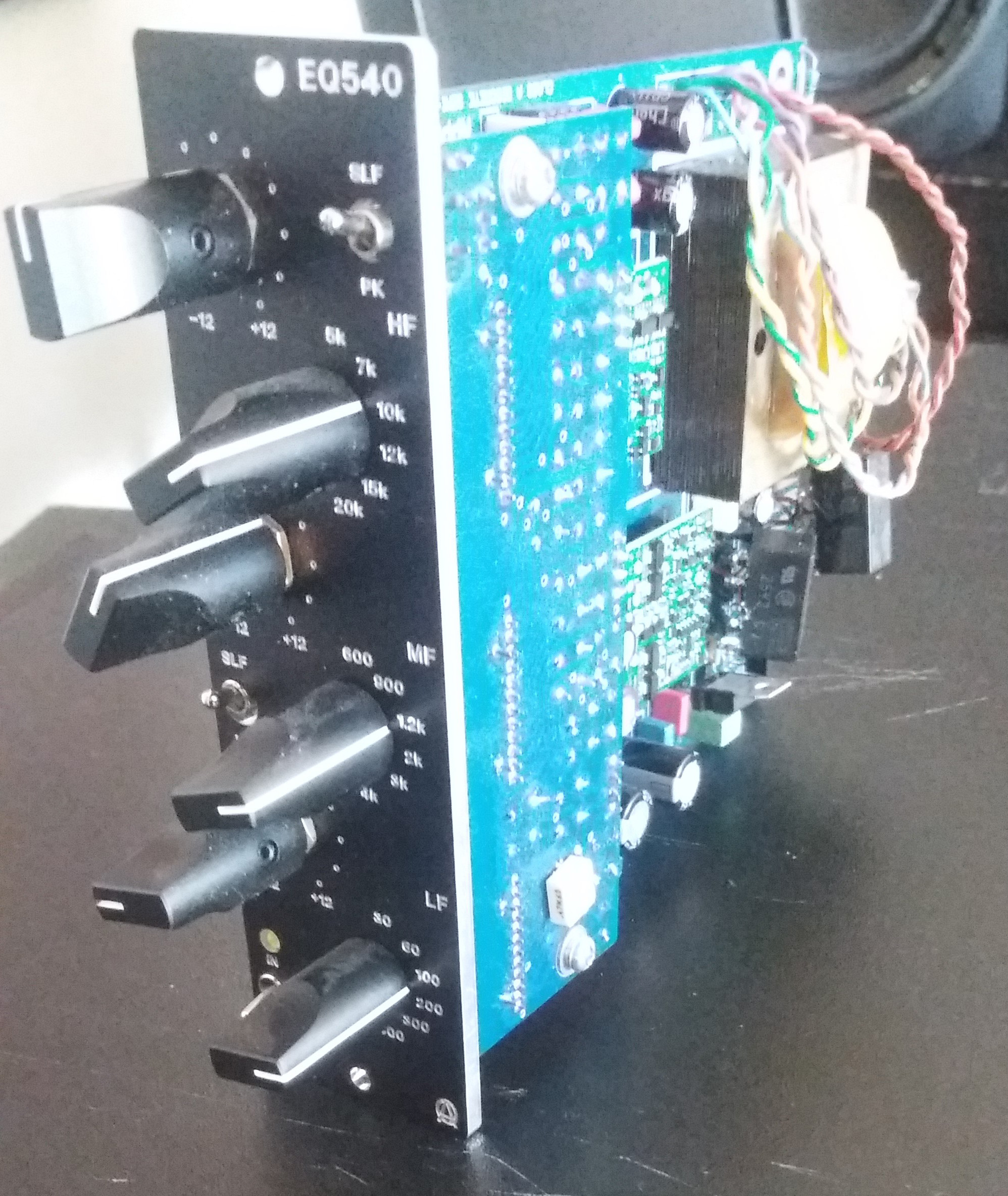

EQ540 top

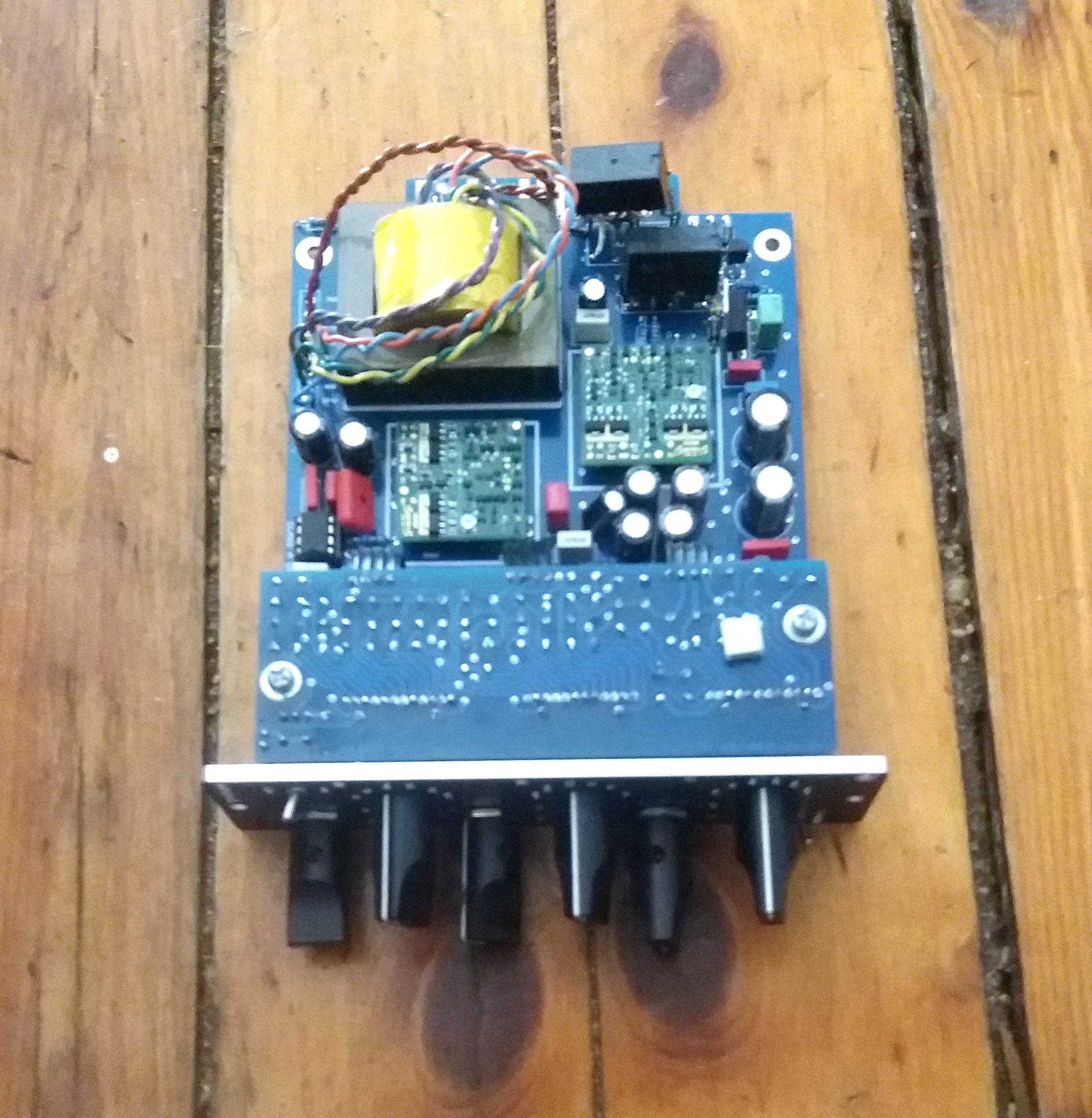

Along with an EA2503 output transformer there are two 2520 DOA's made by Sparkos Labs in the signal path. Sparkos Labs DOA's really shined through and made the eq come alive. Comparable to Scott Leibers infamous DOA's

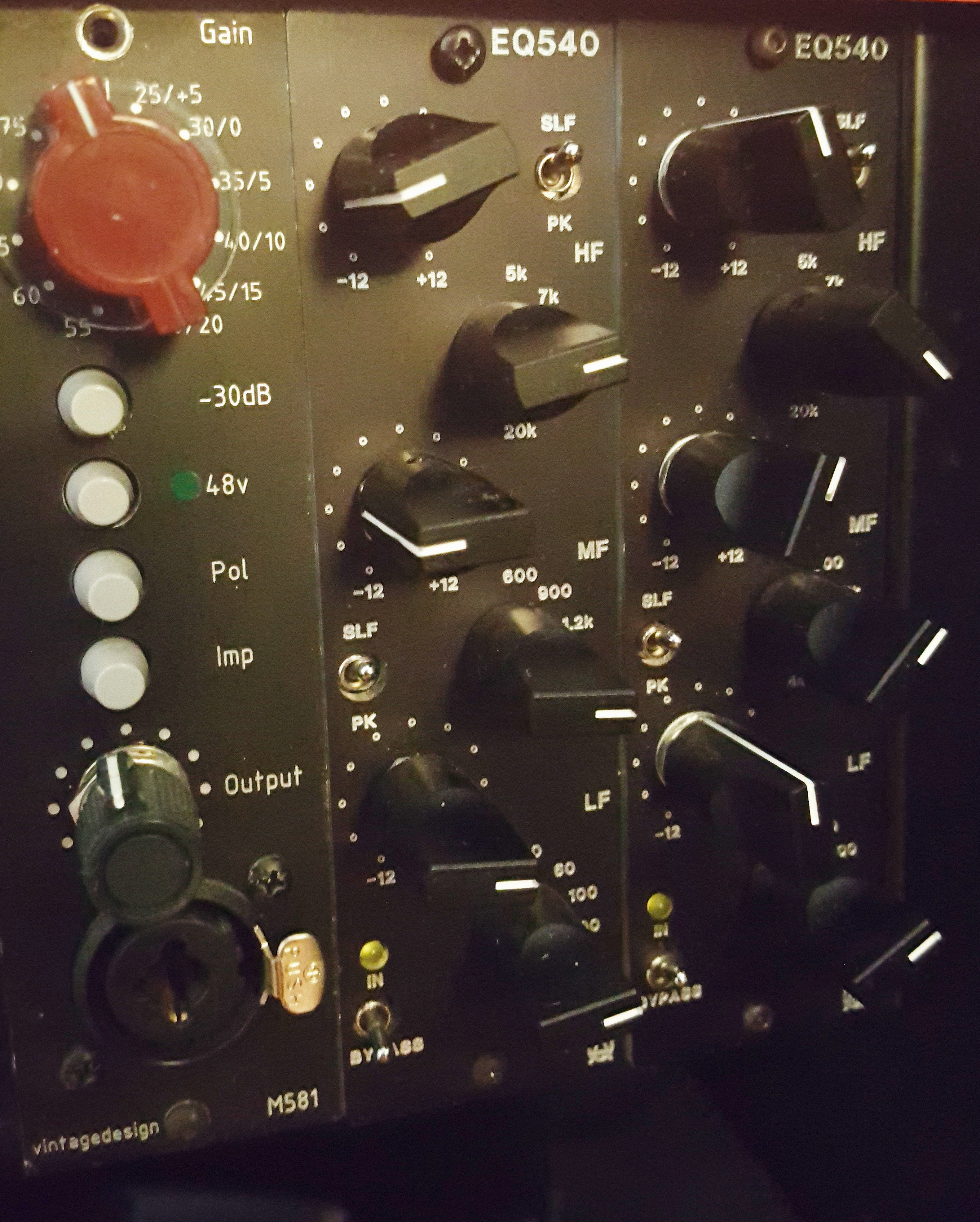

EQ540 x 2

Glorious gyrator equalizer's with Grayhill rotary switches, Sparko Labs 2520 DOA's, and EA 2503 Output Transformers.

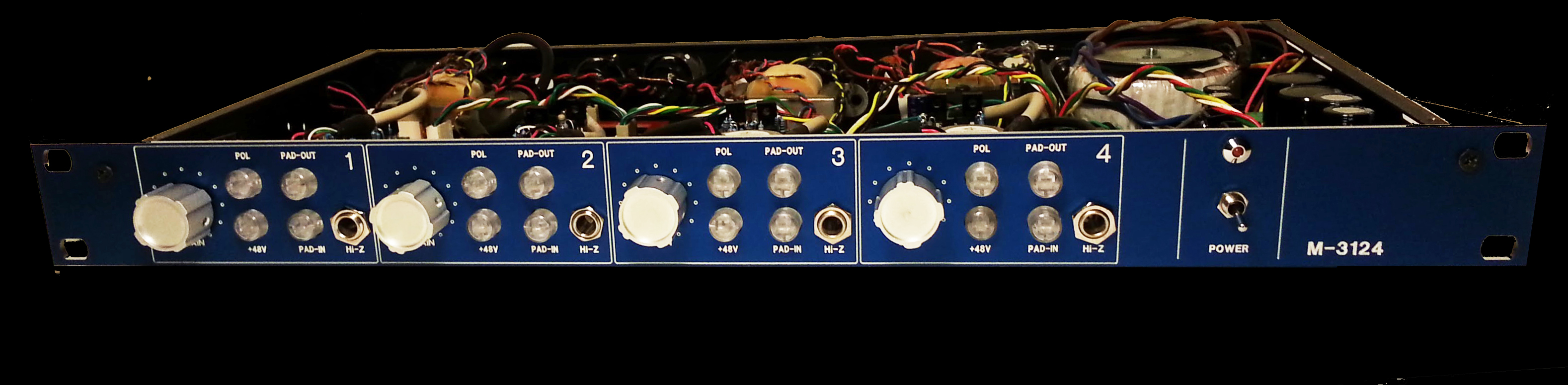

m-3124

m-3124

4 channel api type mic pre

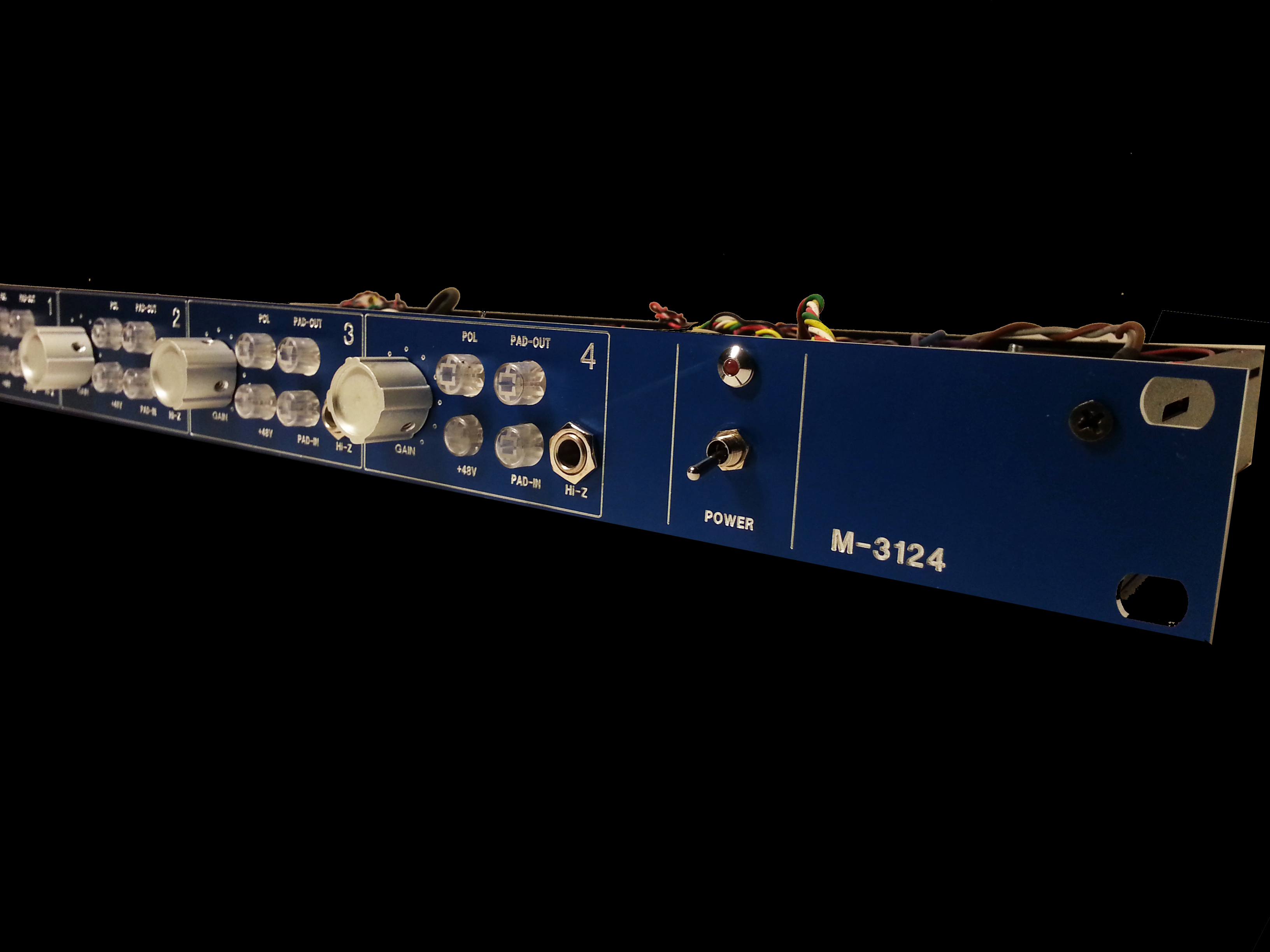

M-3124

Four API type mic pre-amplifiers. Each channel features illuminated push-button switches for input and output pads as well as 48v phantom power and polarity reverse.

he 69 dual eq

solid state helios type eq with DOA signal path and edcor and carnhill transformers

Two channel helios type 69 eq

Using the solid state gain make up designed by APP Studio ing this version of Helios type 69 dual channel eq uses DOA (discrete op amp) gain stages and Edcor input transformers as well as Carnhill inductors and output transformers. Tight EQ.

DOA gain staged stealios eq

pirate art and hel (from) ios

Alembic F-X2 two channel guitar amp

A very popular DIY guitar amp the Alembic is the tube preamp section of the Fender dual showman and was used by many great guitarists. This uses a solid state 120 watt power section making it great for recording and live.

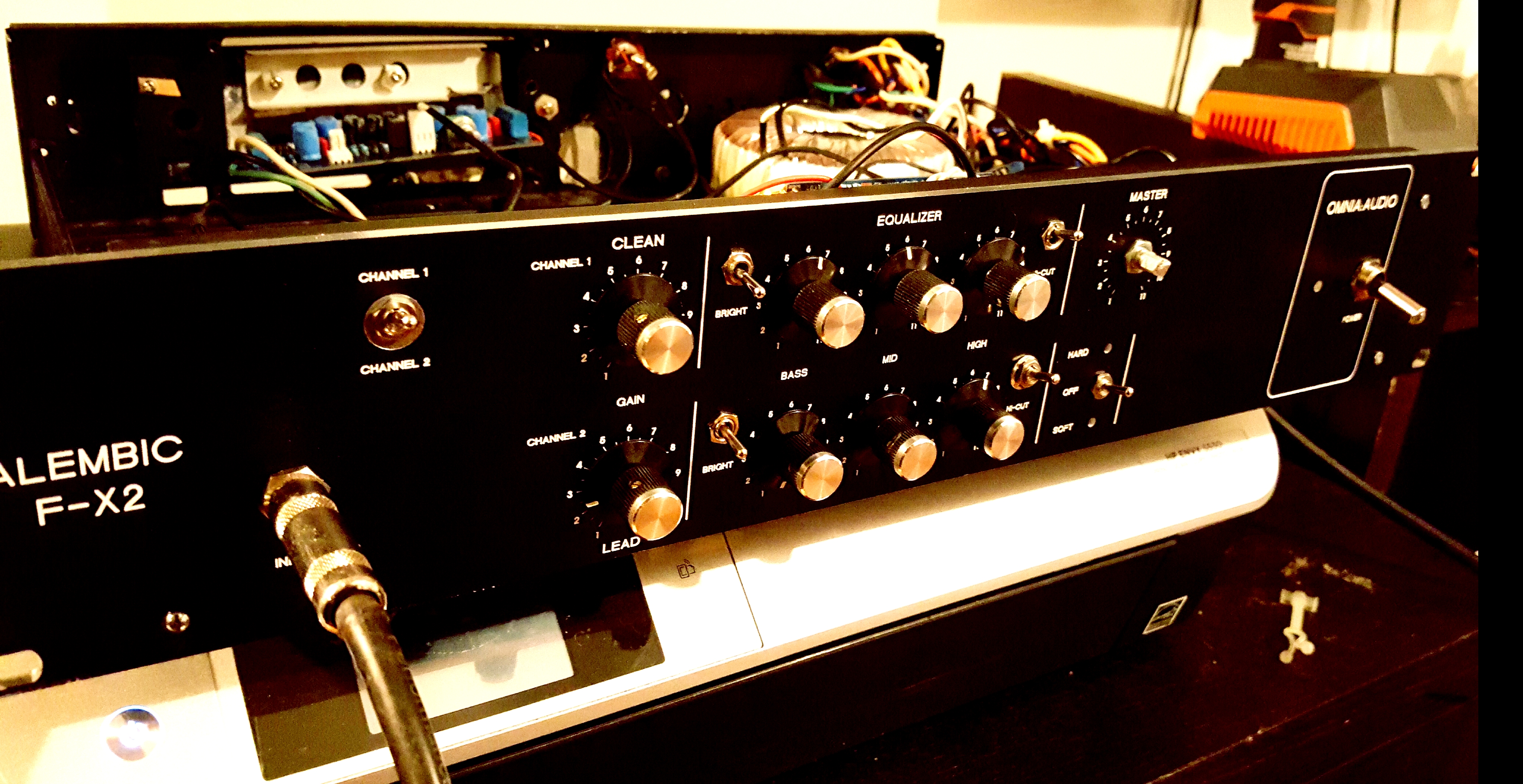

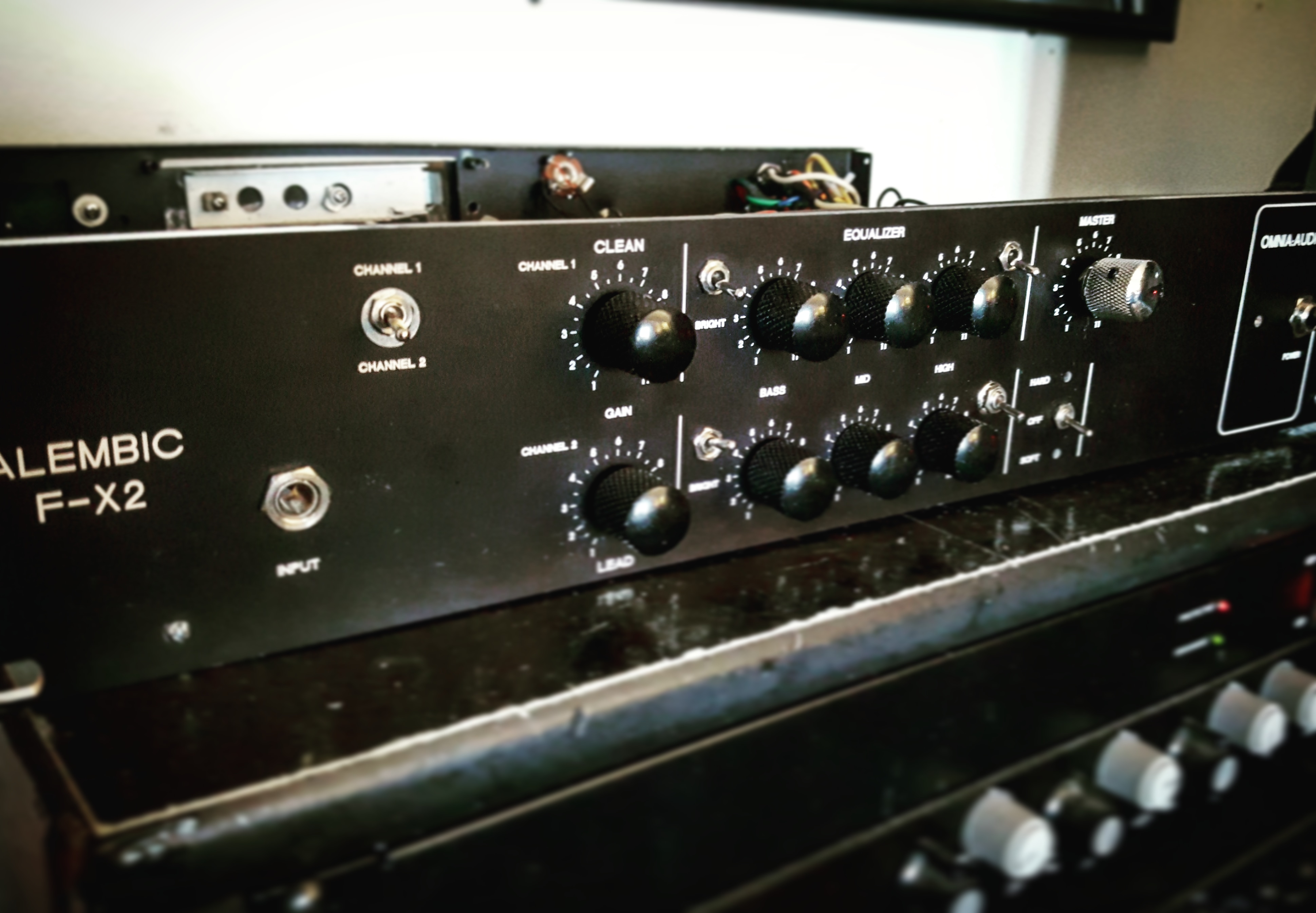

Alembic F-X2

Two channel Alembic type 120 watt guitar amplifier. Tube preamp front end with solid state amp.

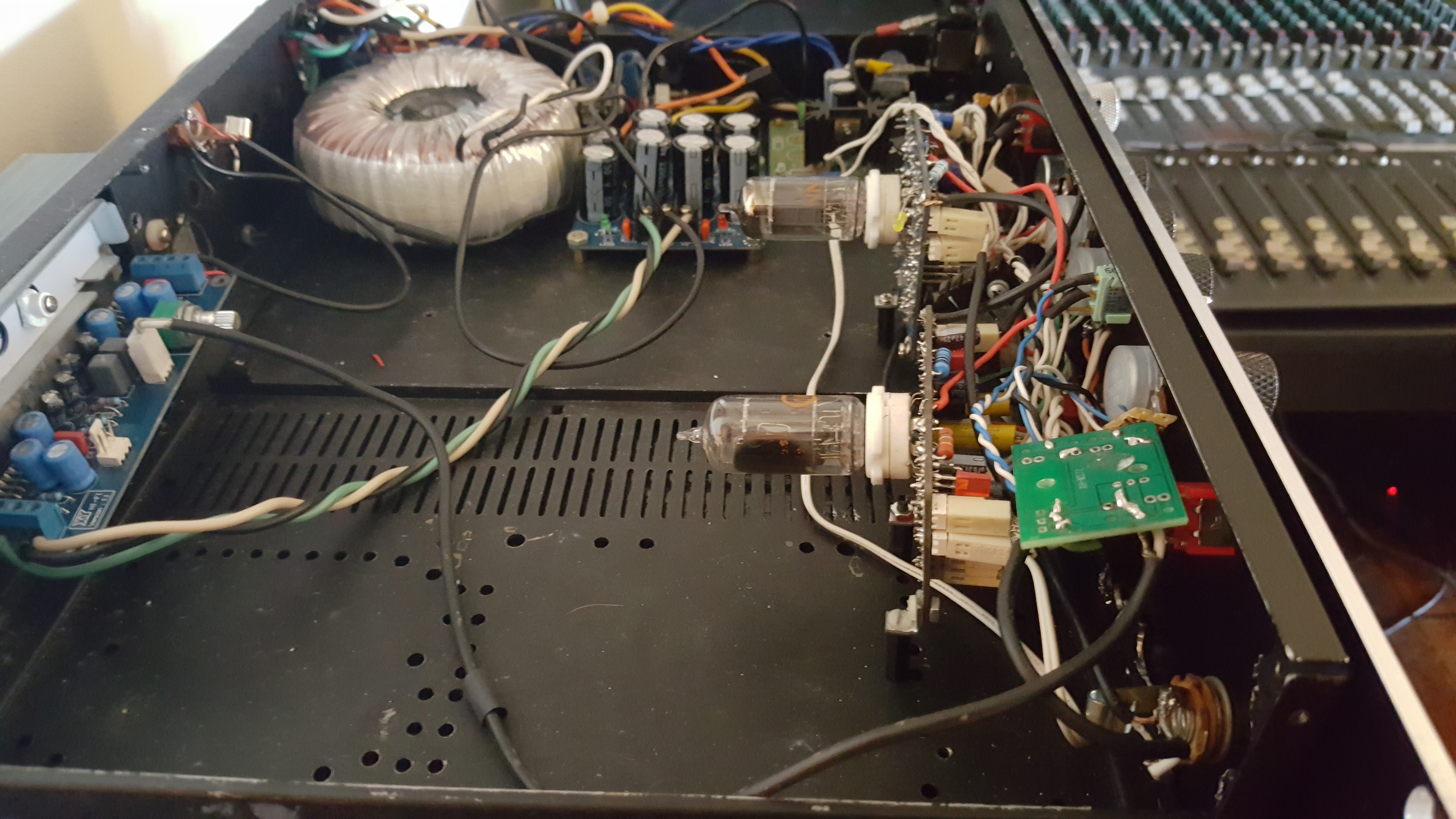

Alembic F-X2

Pic of the final testing of the Alembic FX-2

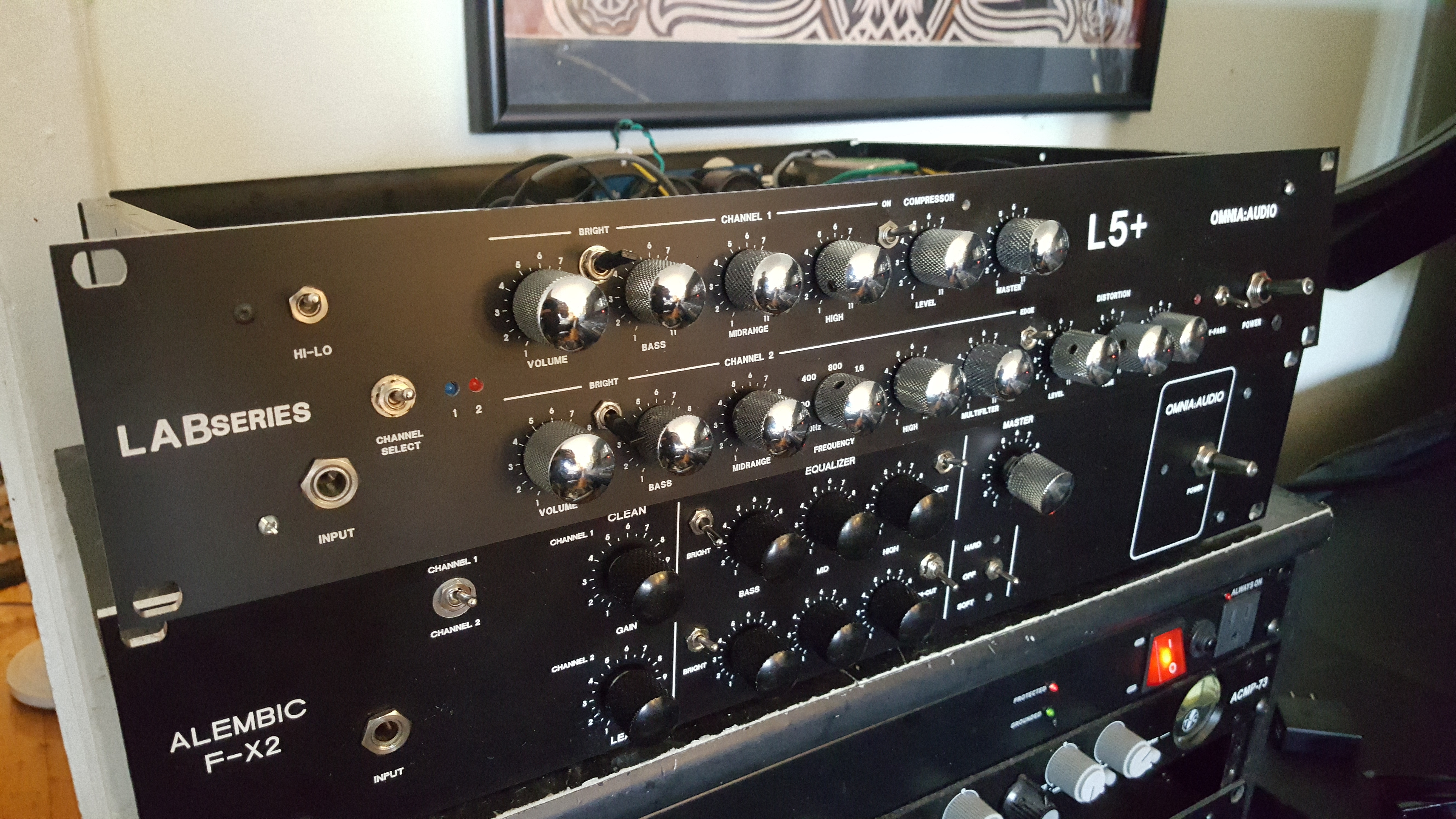

Lab L5+ and Alembic F-X2

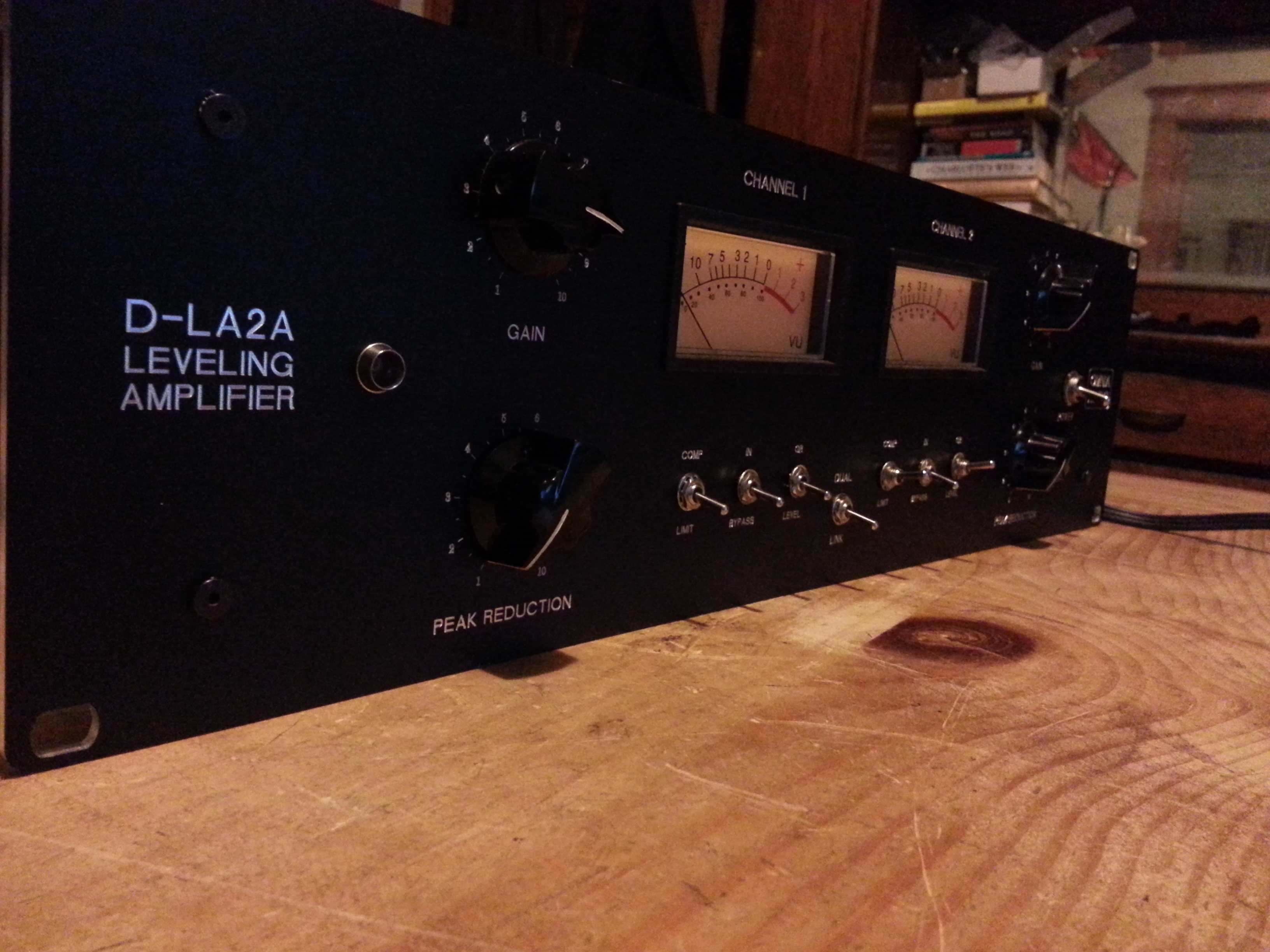

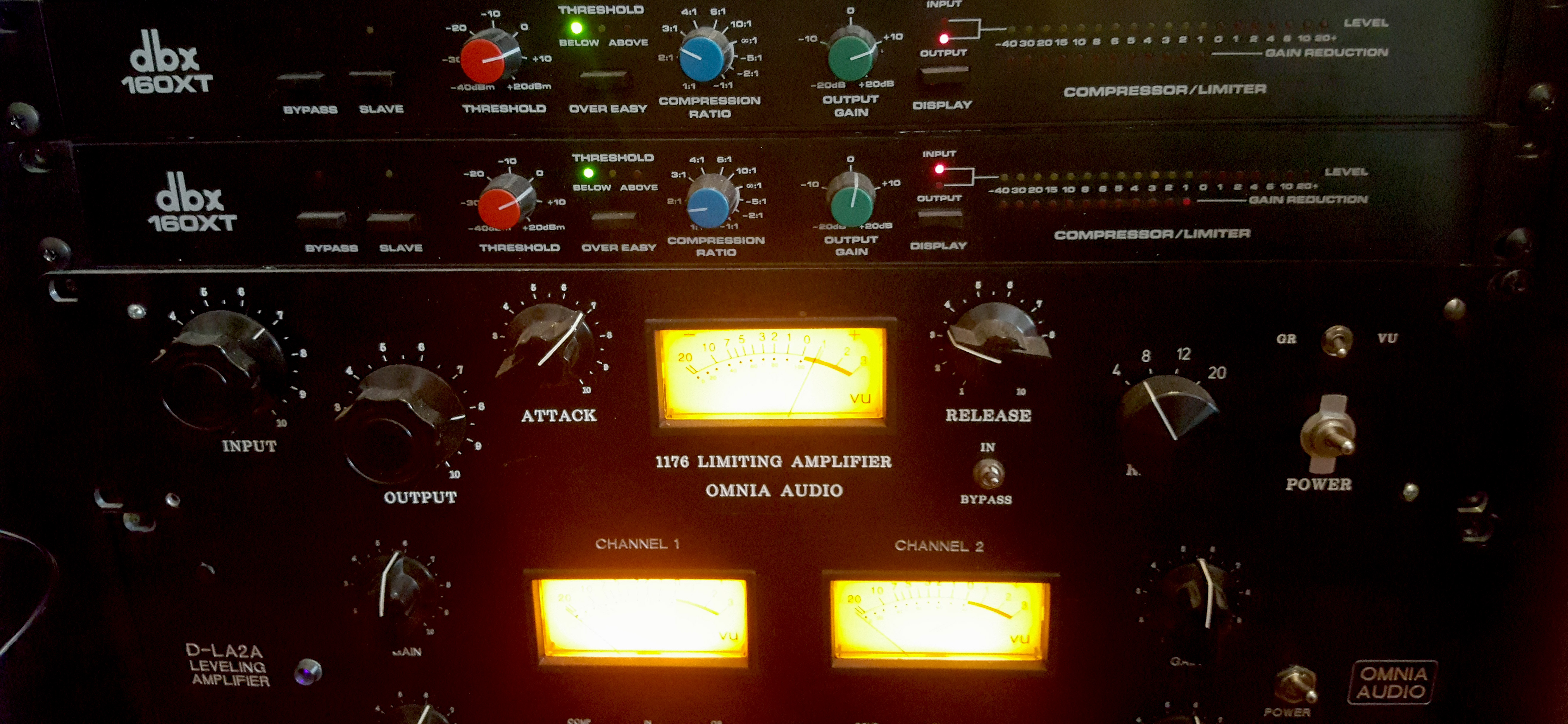

D-LA2A

Dual channel LA2A - two channels of the legendary tube compressor. A favorite in the studio (and studios everywhere) and used all of the time. Uses pcb's designed by Volker Mayer at [silent:arts]

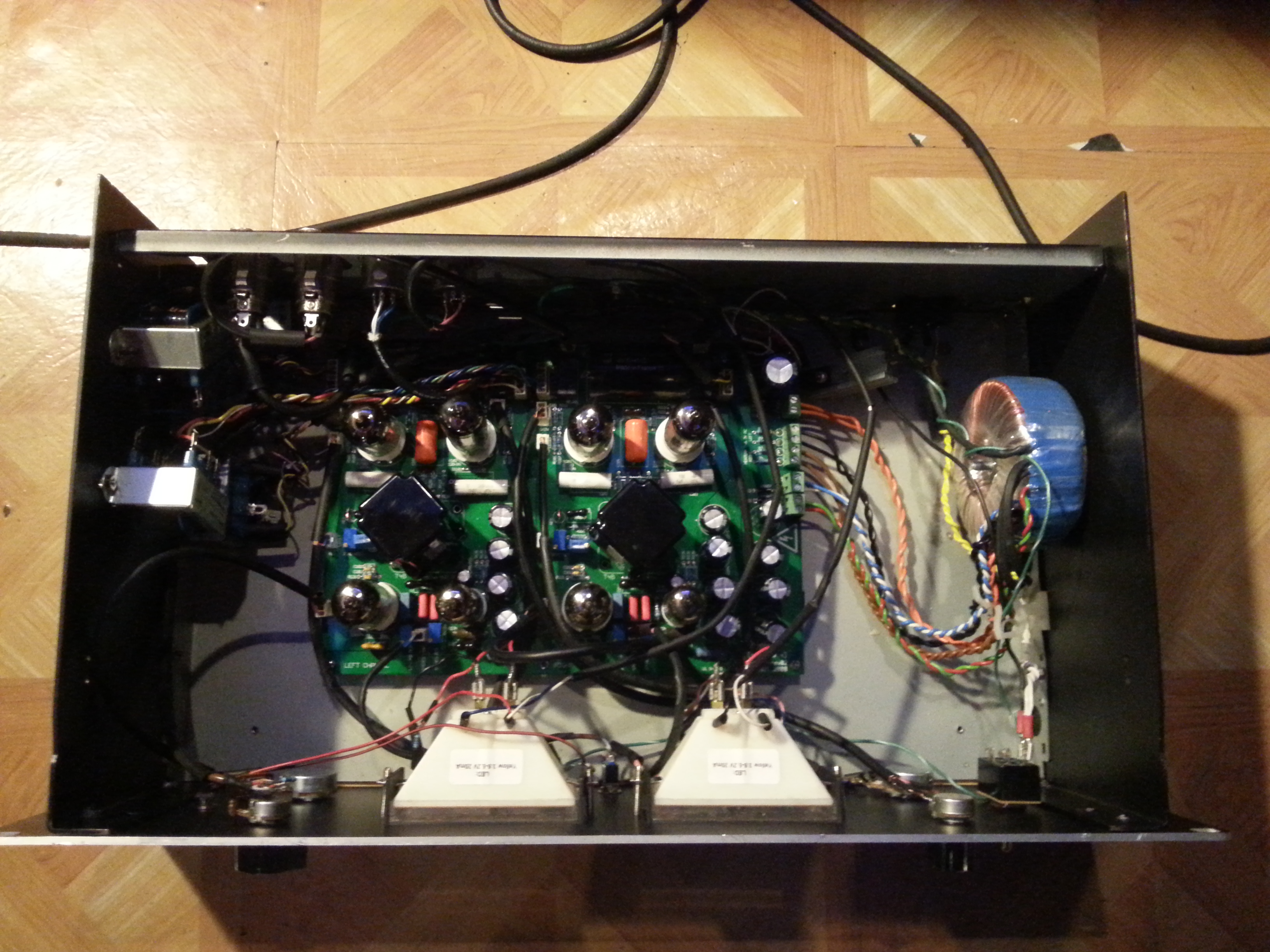

D-LA2A insides

Insides of the D-LA2A - Built by OMNIA:ARTS using the pcb designed by the genius Volker Mayer [silent:arts].

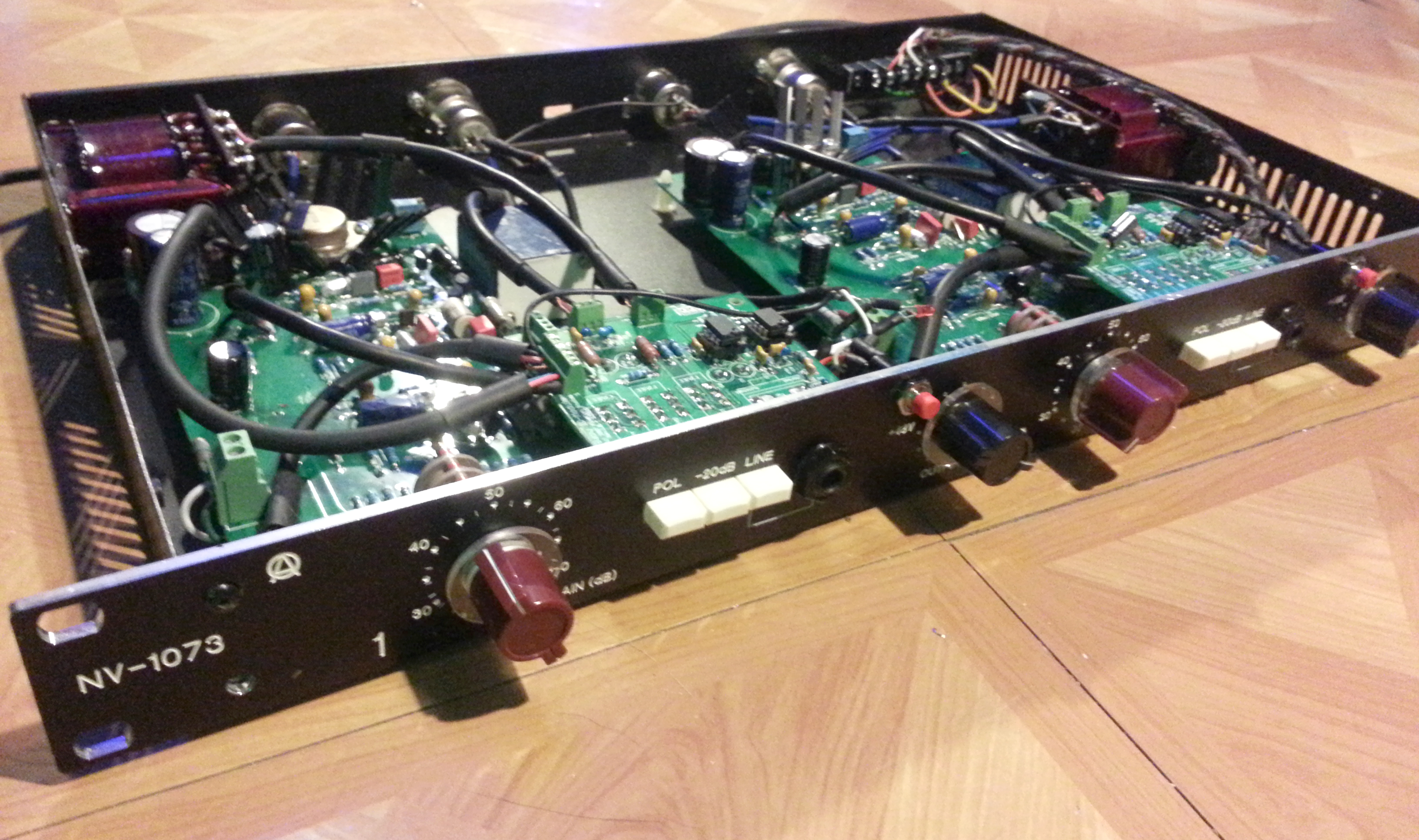

NV-1073 Neve mic preamp clone

Recreation of the venerable 1290 preamp section of the Neve 1073 with pushbutton switches for 48v, polarity reverse, and line/mic switch. Stepped gain stage and output trim. Amazing on everything and also works great for summing for those who want to impart some of the analog Neve warmth to their mix.

NV-1073 top

Neve 1290 mic preamplifier clone top view

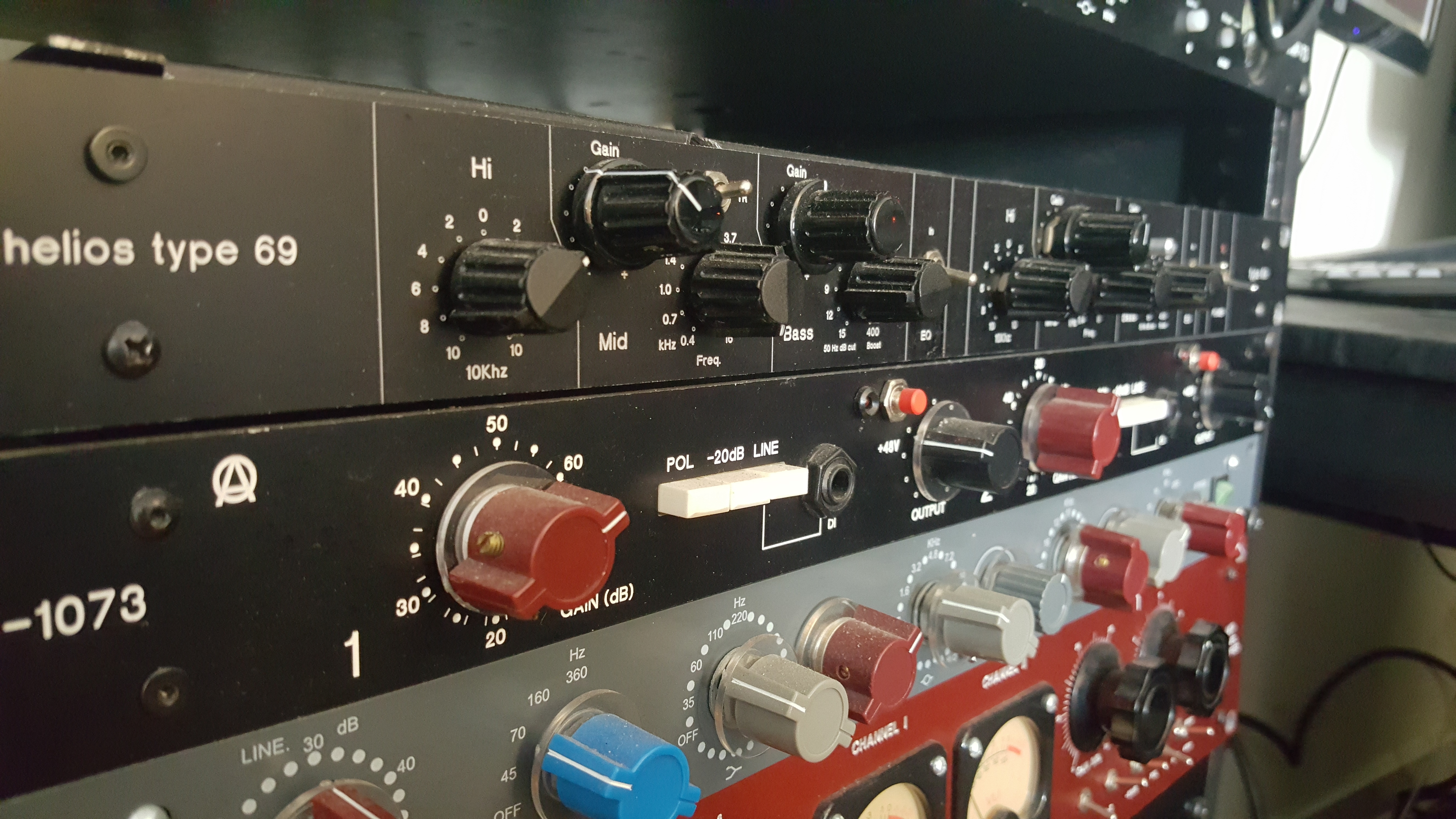

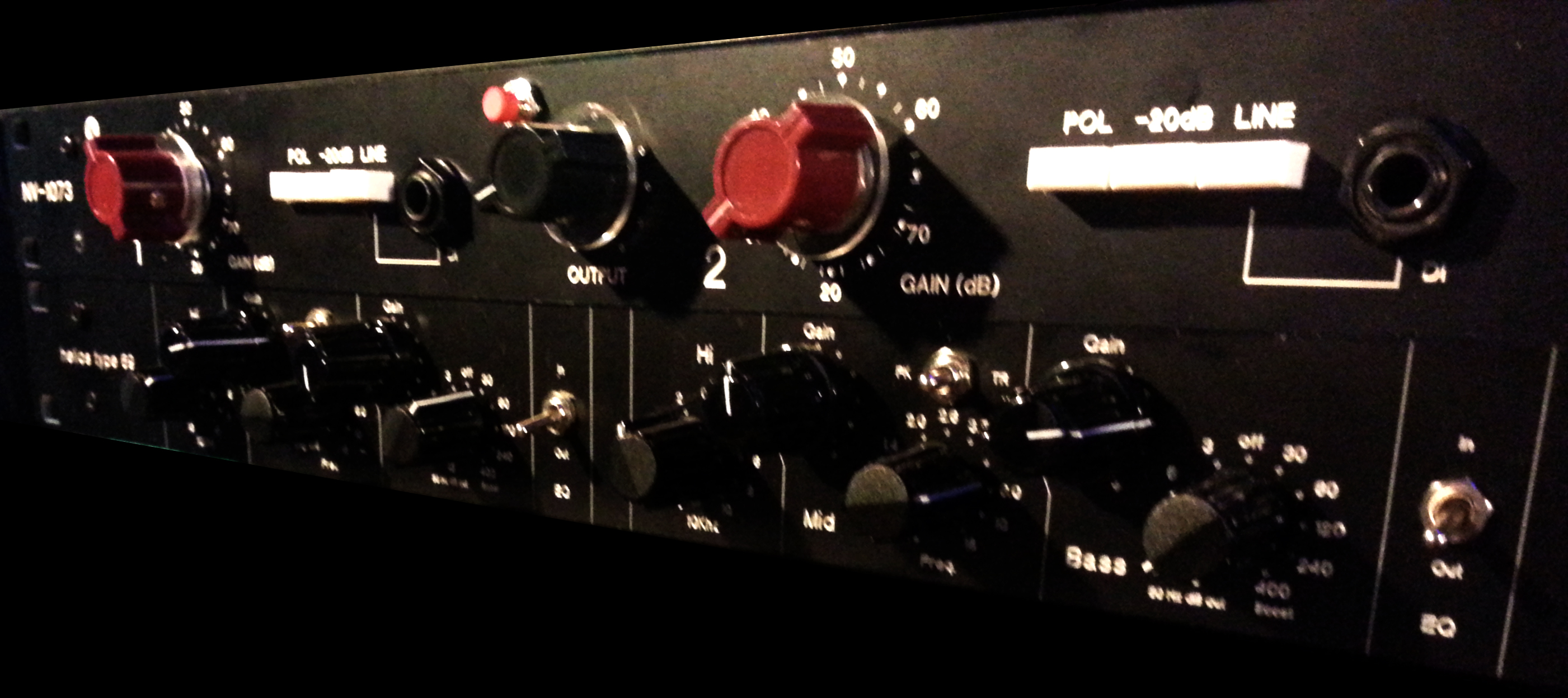

Neve and Helios

2 channels of Neve clone preamplifiers on top of 2 channels of Helios type 69 EQ's. Amazing channel strip

Helios and Neve type builds

1176 front 1u

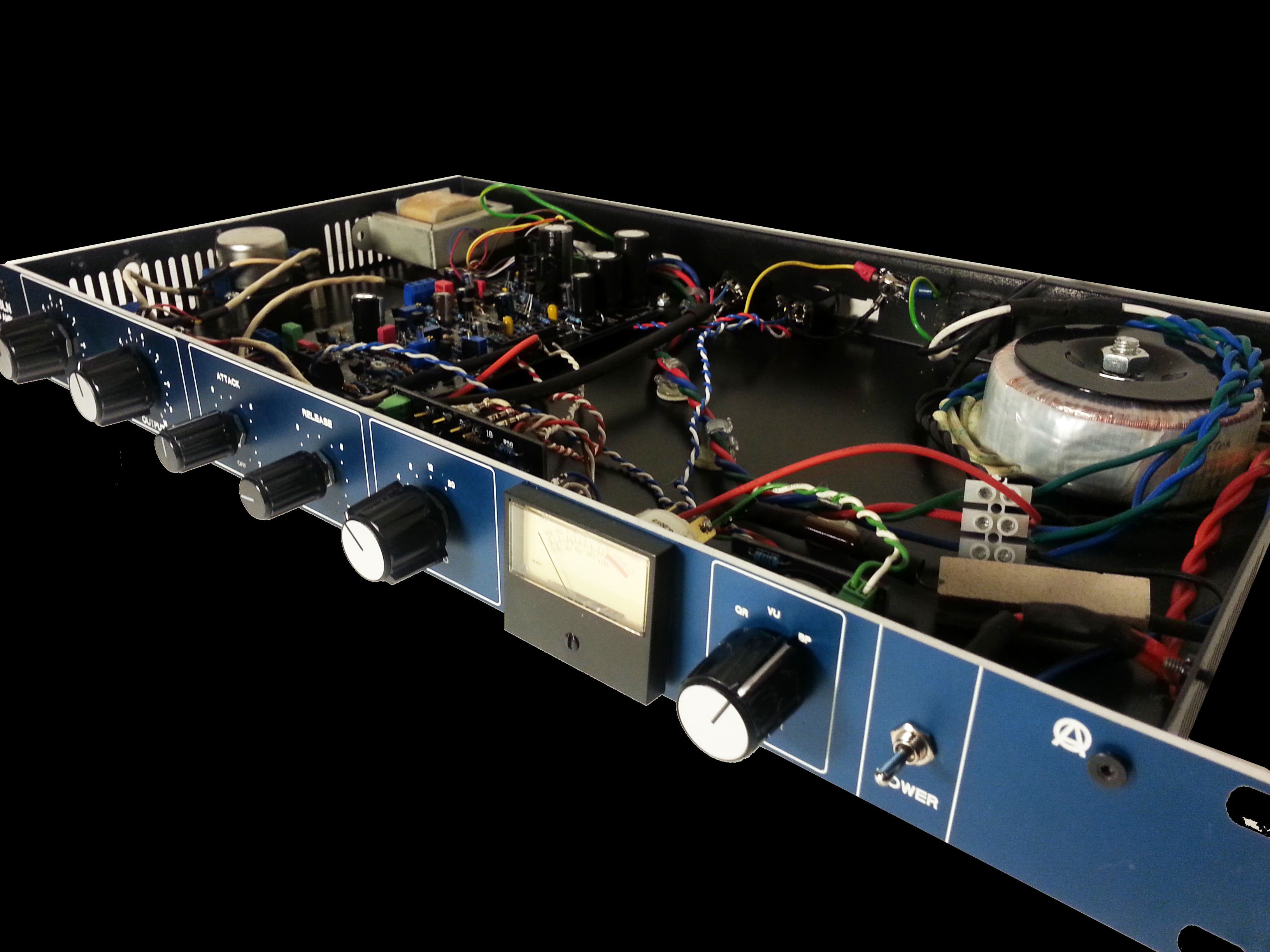

1176 1u

A rendition of the classic compressor in a 1u size. We had made two verions both designed by Mnats. One was etched here at omnia:arts while the other was made by hairball audio. Please check out their link in our DIY section

1176 front side 1u

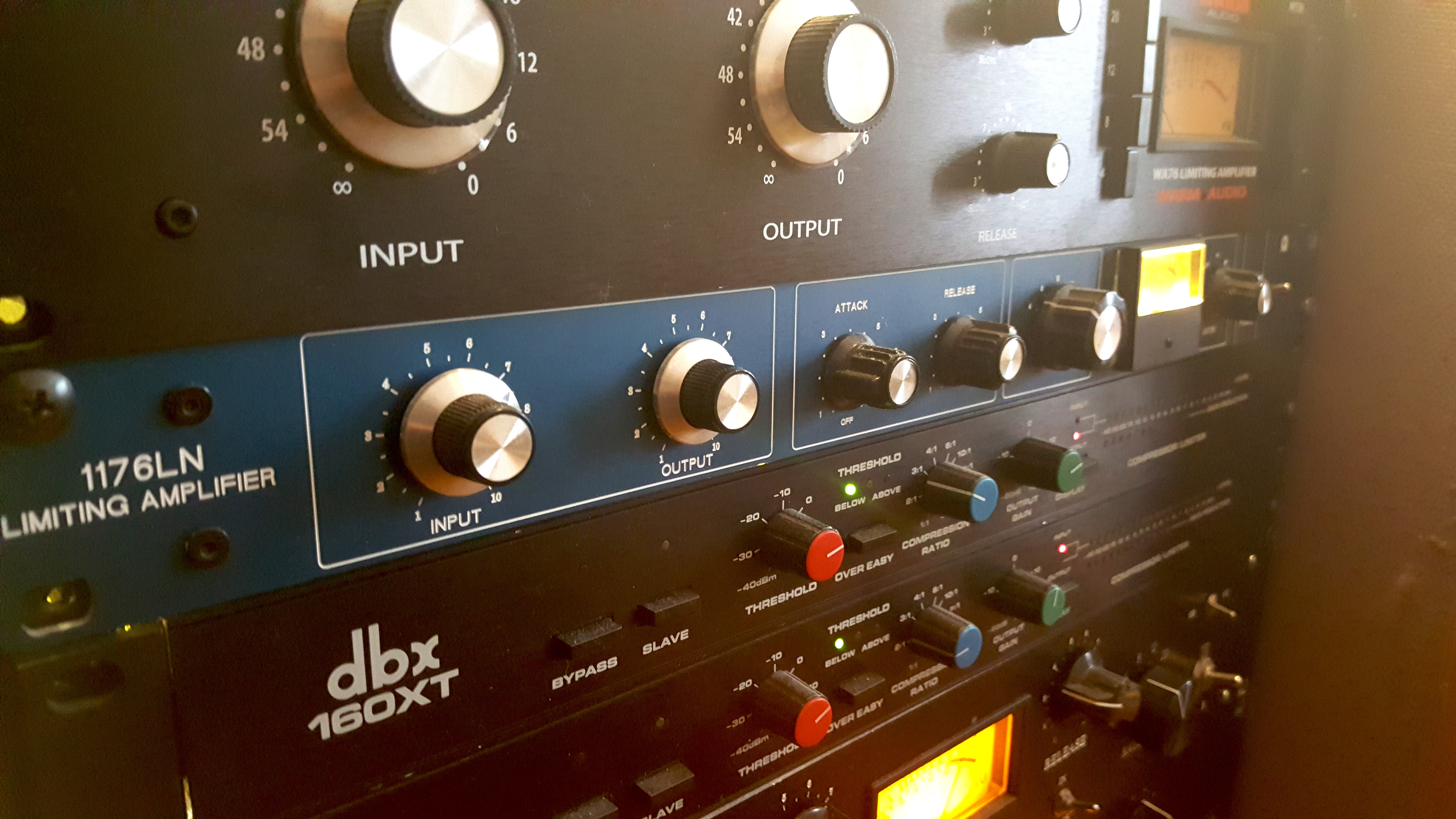

1176LN Rev D in 1U

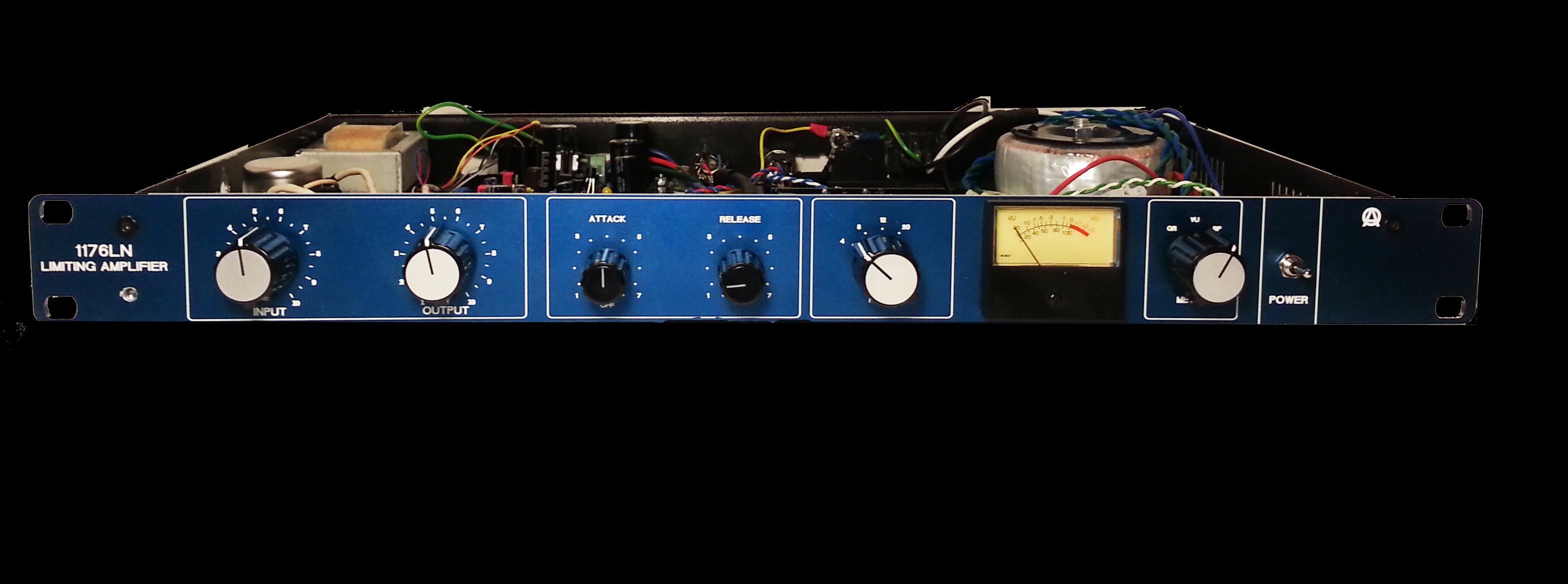

Another 1176 limiting amplifier Rev D in 1u size.

CTC-MP tube mic preamp

Custom Twin Channel tube mic preamp.

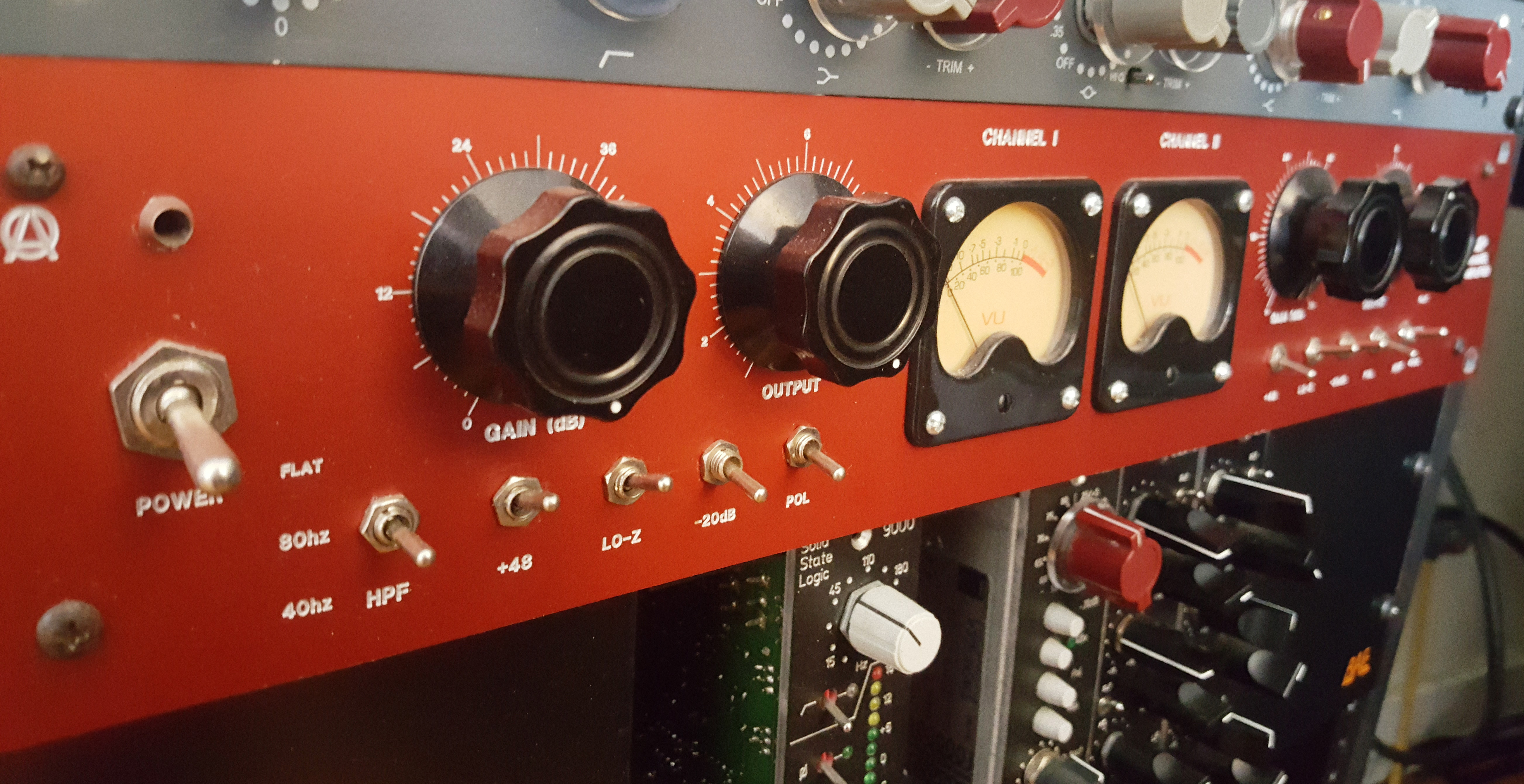

CTC-MP

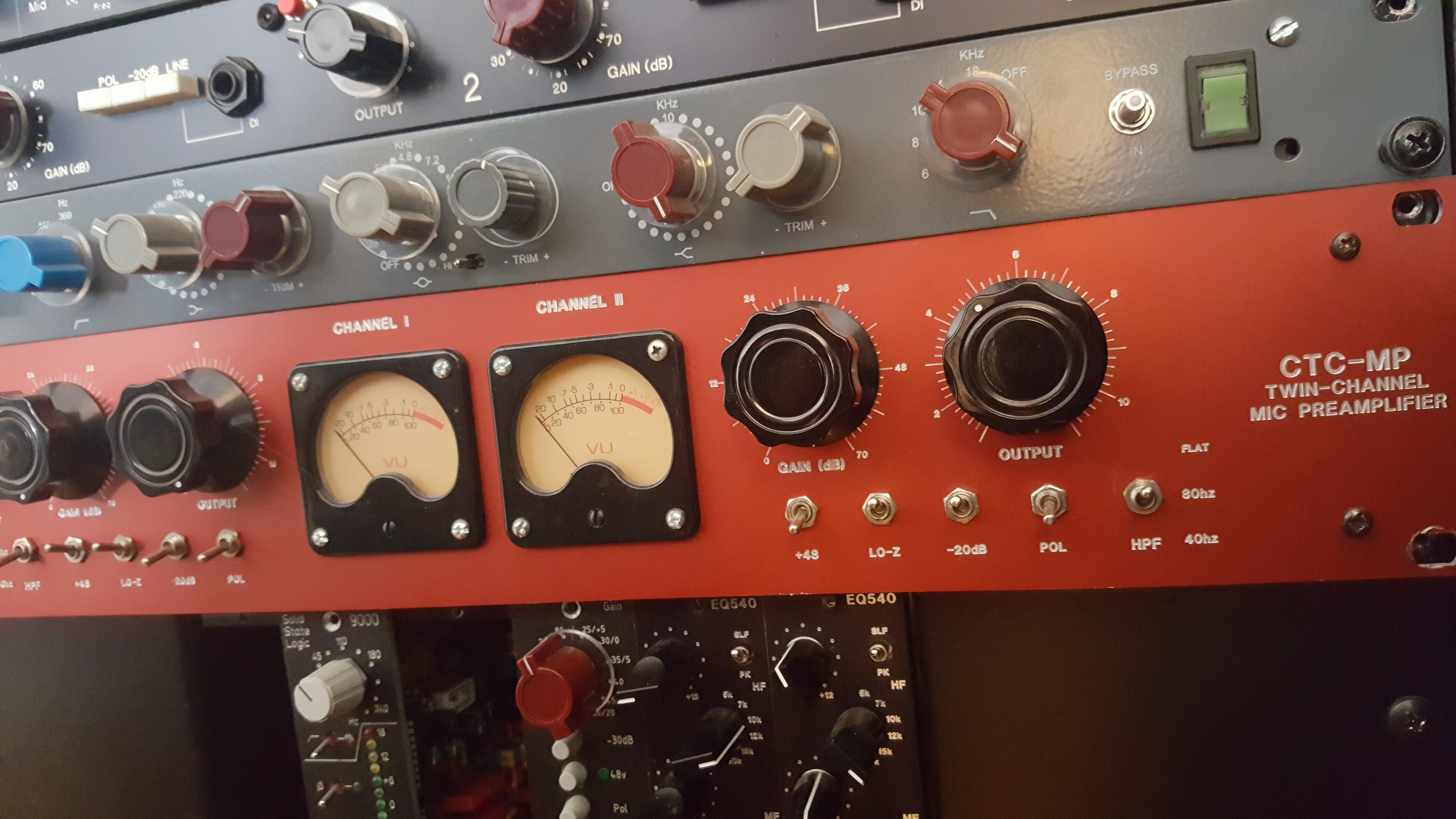

2 channel tube mic preamp with Jensen input transformers and Carnhill output transformers. Powerful and awesome tube mic preamp with wonderfully hi fi signal path,

CTC-MP2

CTC-MP2 - Dual channel tube mic preamp with Jensen input transformers and Carnhill output transformers. Just Beautiful. Built by OMNIA:ARTS using a one of a kind PCB designed by Ian Thompson Bell of Ruff Records. One of the best mic preamps I have ever used.

CTC-MP@ insides

Insides of the CTC-MP2. Tube warmth with Jensen and Carnhill transformers for even more warmth.

Tube gain staged Helios dual eq.

Dual channel Helios type 69 eq filters with tube gain stage and Carnhill transformers.

phelios 69 type tube gain staged eq

Helios 69 eq

Helios 69 EQ using tube gain stage as well as Edcor input transformers as and Carnhill inductors and output transformers.

Helios type 69 tube gain

Inside the Helios type 69 tube gain stage EQ with Edcor and Carnhill transformers.

Pultec PM-D-EQP-2A

Dual channel Pultec EQ with Carnhill transformers and tube gain stage.

D-Pultec EQ-P2A

Overview of the Dual Pultec EQ-P2A

Dual Pultec EQP-2a

PM-D-EQP-2A (Poor Man's Dual eqp-2a) uses the filters and tube gain stage first designed by Ian Thompson of Ruff Records for his tube mixer channels.

Pultec, Helios, and helios

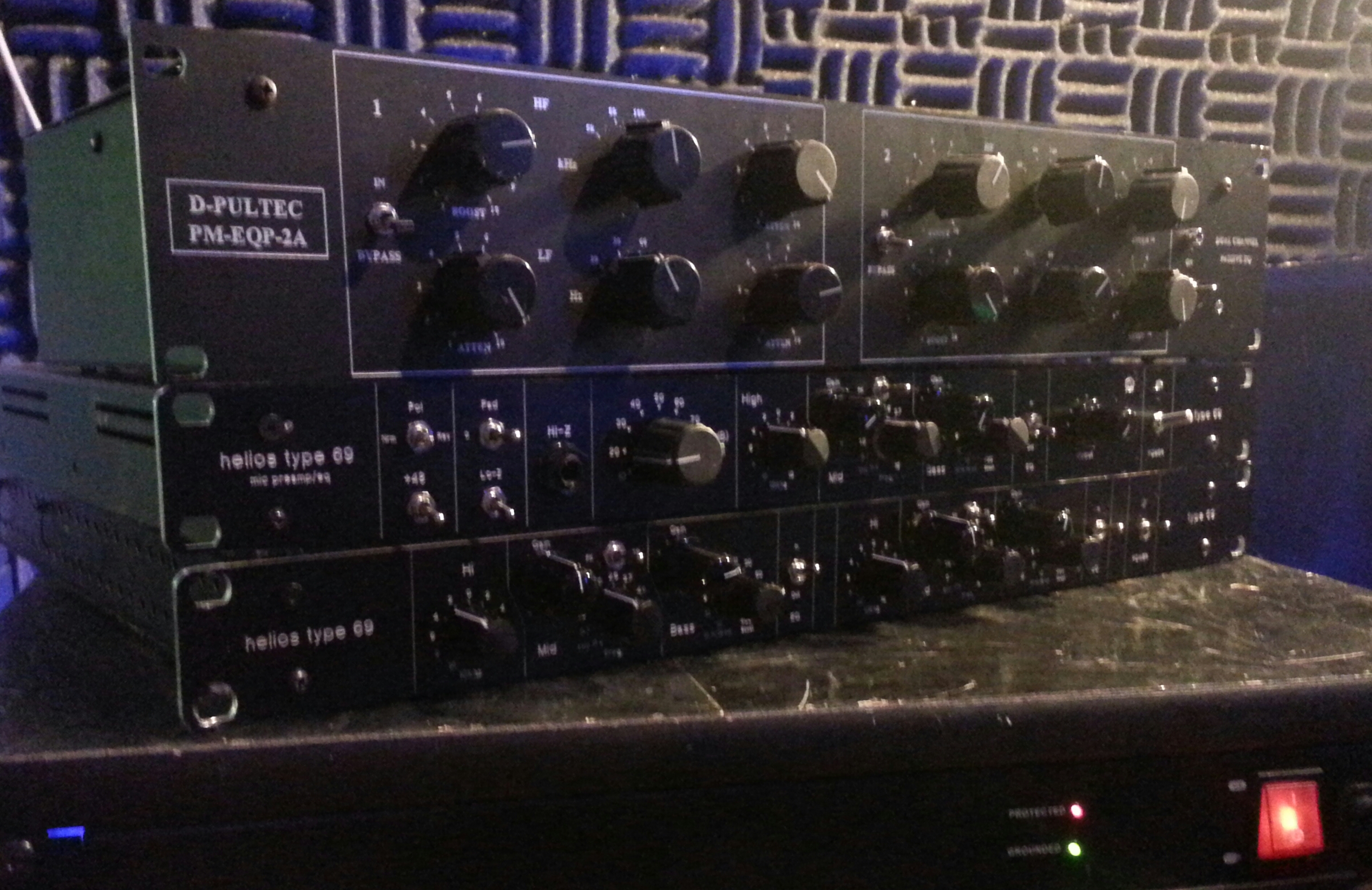

Dual channel Pultec EQP-2A on top of Helios 69 mic preamp/eq on top of dual channel Helios type 69 EQ

Dual Pultec, Helios 69, Helios eq

Dual Pultec, Helios mic preamp eq, Helios dual eq

PH76 j

Recreation of the 1176 rev 'J'. Very solid compressor.

1176 limiting amplifier

1176 limiting amplifier rev J

DIY classics: GSSL, W492, 1176

From top to bottom; GSSL compressor using Jakob Erlands pcb's, Neumann W492 eq using the pcb's designed by Audiox, PH76 (1176) compressor

G-SSL compressor with turbo

G-SSL compressor. Turbo addition makes it behave just like the bus compressor on the revered SSL 4000 mixing console.

M-31X2

Two channel API 312 type mic preamp

APP540

APP 540 - omnia:arts was one of the first to build and test these two gyrator EQ's using pcb's designed by the transistor wizard Pier Paolo Abbatte. Both have DOA input and output stages with EA 2503 output transformers. Similar to API 550 eq but better.

Pedal

prototype MX72-NV

Testing the prototype MX72-NV

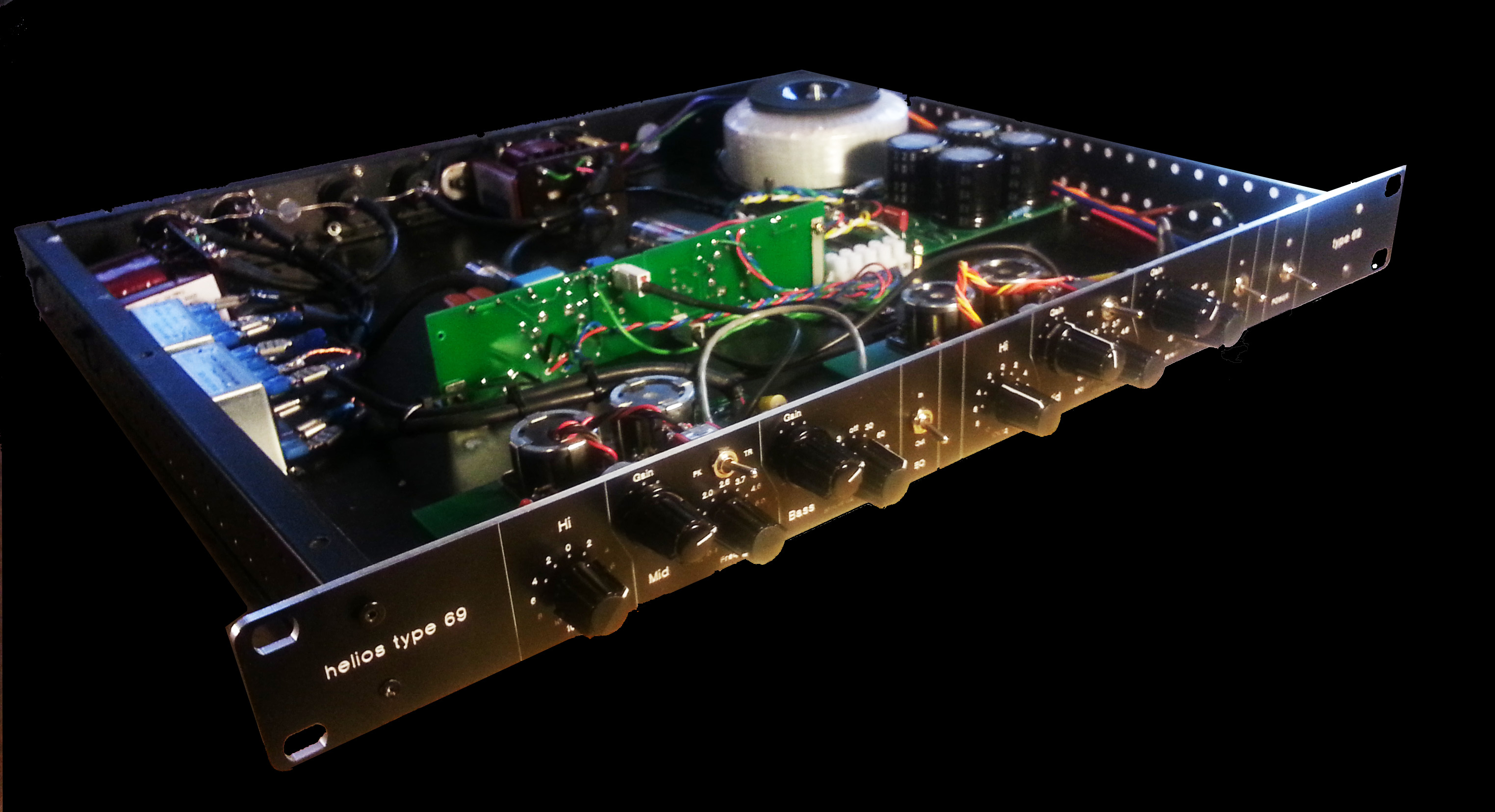

(p)helios type 69 module thingy

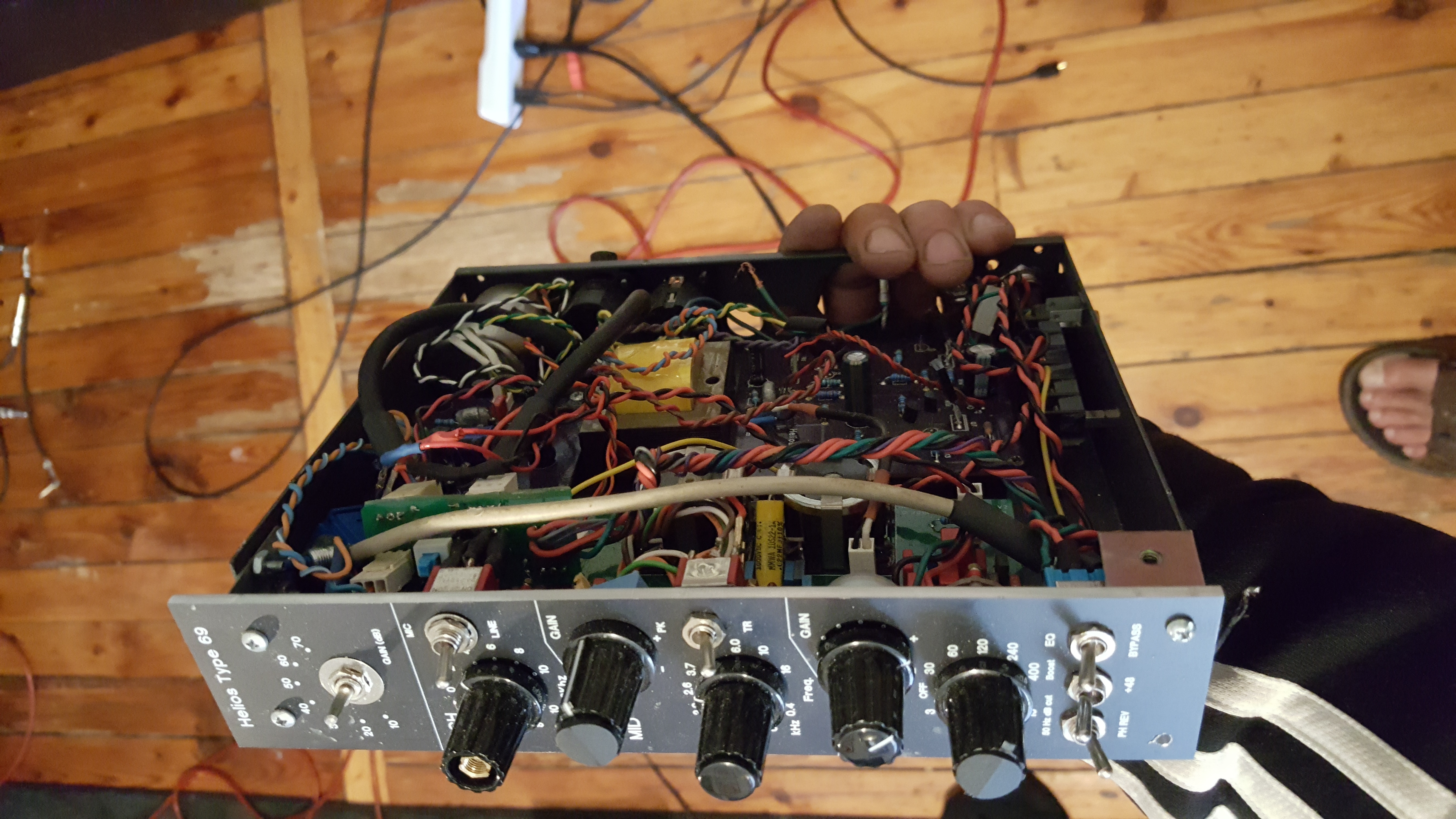

Helios type 69 module we made for a former Helios console owner with an added output transformer. The originals didn't use output transformers and went unbalanced.
